12V Transformer for VERTICAL/HORIZONTAL Heated Towel Rail 48W/72W

12 volt transformer suitable for Vertical Heated Towel Rail Online | Domenic Bathroom      &      HORIZONTAL SINGLE BAR HEATED TOWEL RAIL – Domenic Bathroom

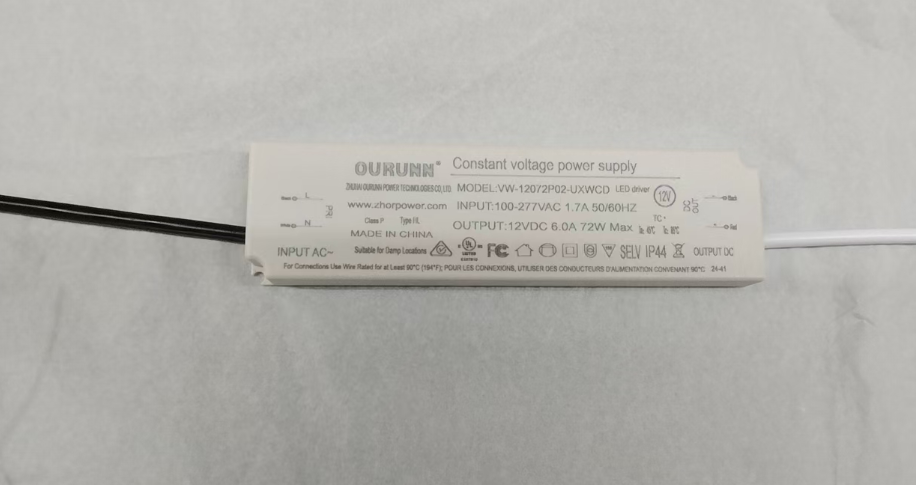

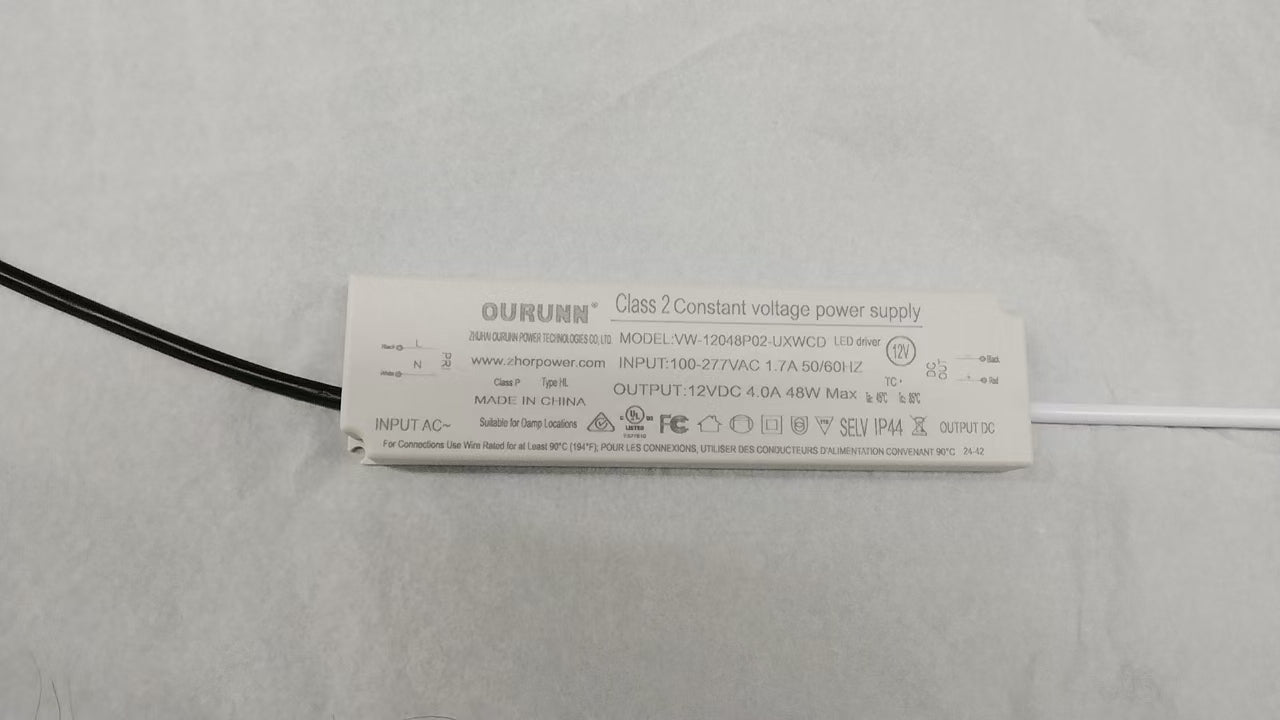

12V Double Certified Transformer for Freedom Heated Towel Rails

Our transformer is designed to meet multiple safety standards, including the Australian and New Zealand electrical safety certifications, as well as UL and FCC certifications for the US market. This provides enhanced safety assurance for product use.

The 12V transformer is suitable for the Freedom modular heated towel rails. A single transformer can support multiple towel rails, with the appropriate power output determined by the combined wattage of all the towel rails.

Power Calculation Examples:

1. One Towel Rail:
   If you only need one rail, for example, the SU-YD01 W600 X D80 (20W), you only need to select a transformer with an input power of 48W.

2. Two Towel Rails:
   If you need two rails, each consuming 20W, the total power required would be:
   2 x 20W = 40W.
   In this case, select a transformer with a power output of 48W.

3. Three Towel Rails:
   If you need three rails, the total power requirement would be:
   3 x 20W = 60W.
   In this case, select a transformer with a power output of 72W.

Important Considerations:

• The transformer must have a power rating higher than the combined total power of the towel rails you plan to use.
• Installation Distance: The maximum distance between the towel rail and the transformer should not exceed 2 meters.

By following these guidelines, you can ensure safe and efficient operation of your heated towel rails.
